Description
Product features:
1. Easy to use and install
2. A general-purpose circuit board that can be fixed in size and can be used with corresponding button functions. Simply plug it in and use it
The sequence of keys 3.4, 5, and 6 can be adjusted,
4. Adjustable pumping time, adjustable boiling point, with display screen
5. Multi button function: Boiling disinfection kettle/Disinfection kettle adding water/Boiling kettle adding water/Reboiling adjustment/Fully automatic boiling water/On/Off
Product parameters:
Voltage: 220V power input
Display screen: digital display
Function: disinfection, water addition, temperature regulation, water boiling, switch
Size:

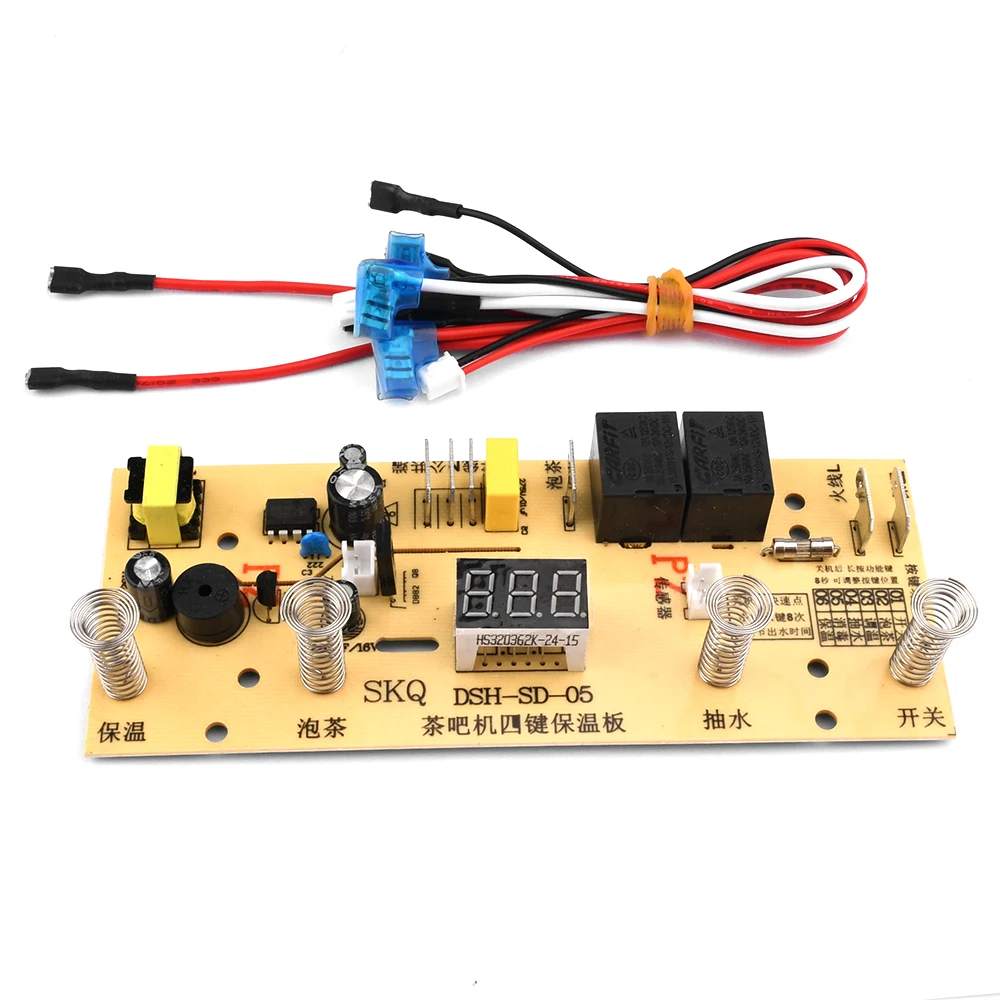

Four keys: 15 * 6cm
Four key insulation board: 15 * 6cm
Five keys: 14.5 * 5.4cm

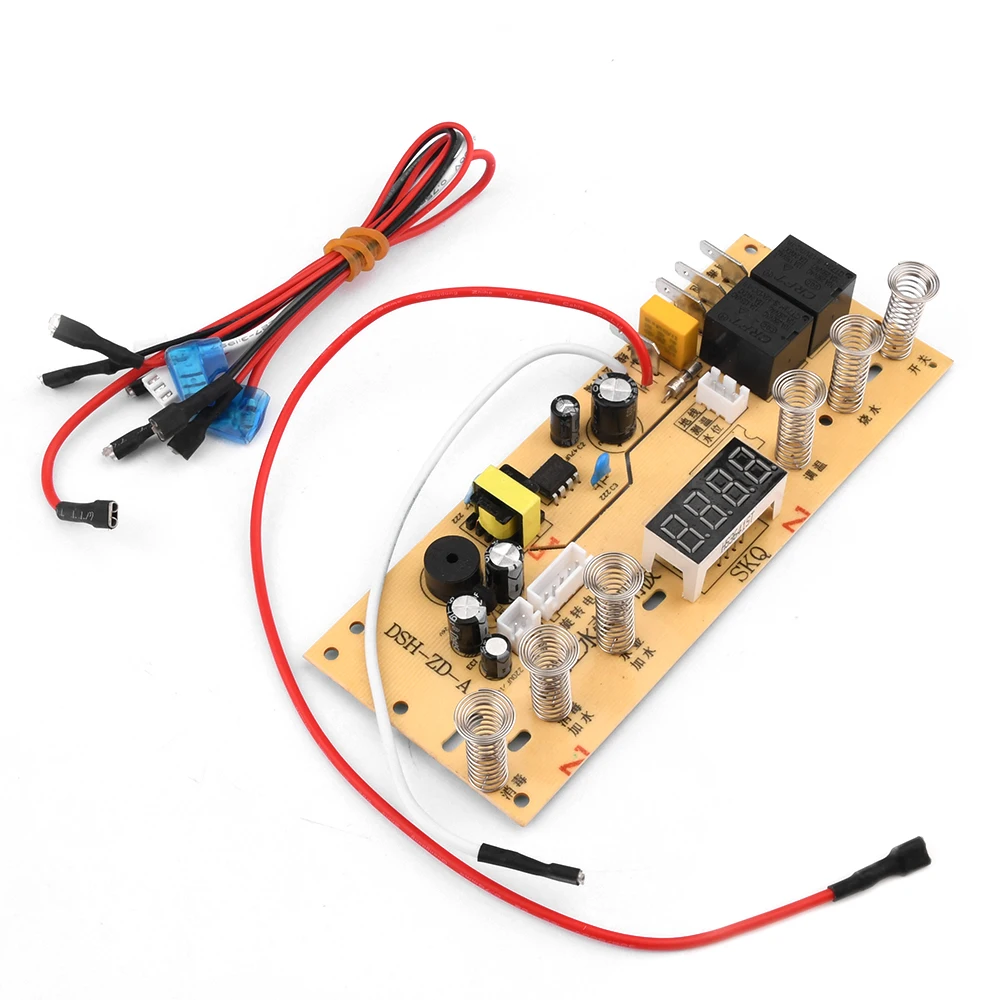

Six keys: 15.1 * 6cm
Function description:

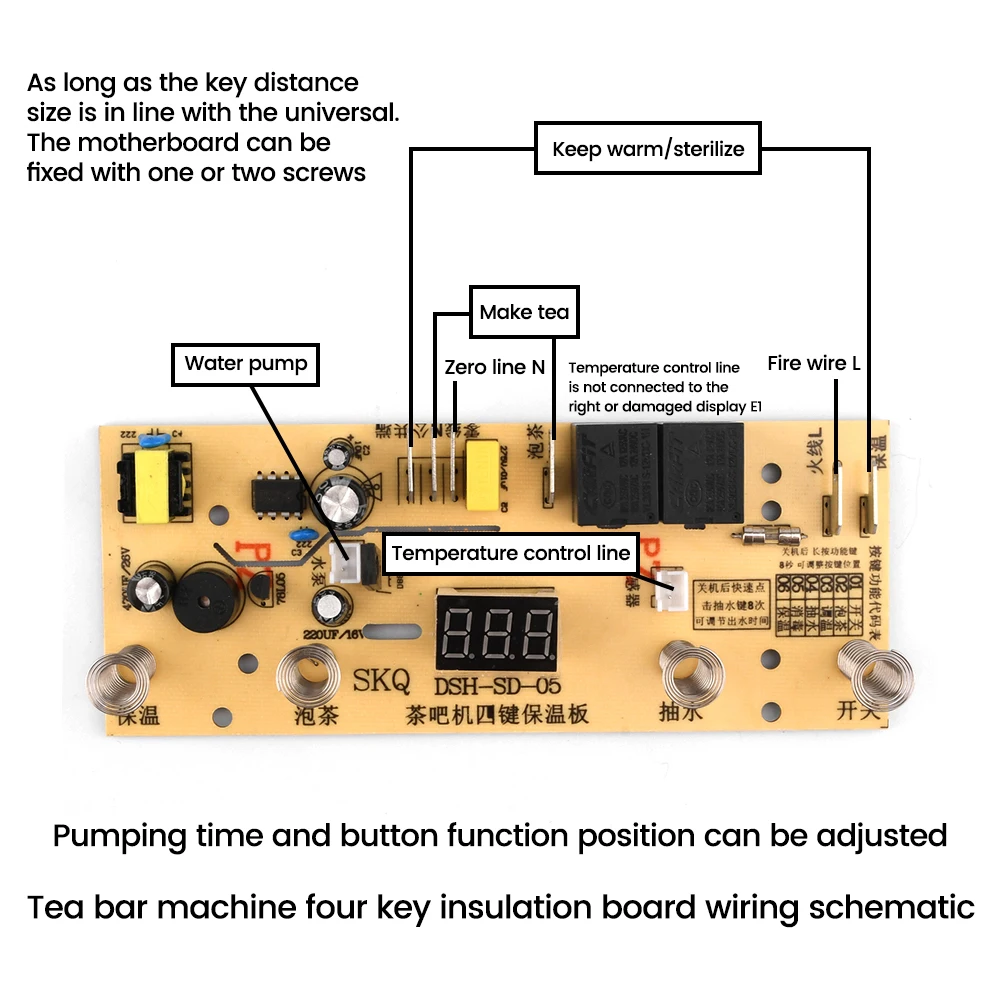

Four buttons: The water pumping time and button function position can be adjusted, as long as the distance between the buttons meets the size, and the circuit board can be fixed with one or two screws to use
Four key insulation board: The pumping time and button function position can be adjusted, as long as the button distance size meets the requirements, it can be universal. The motherboard can be fixed with one or two screws

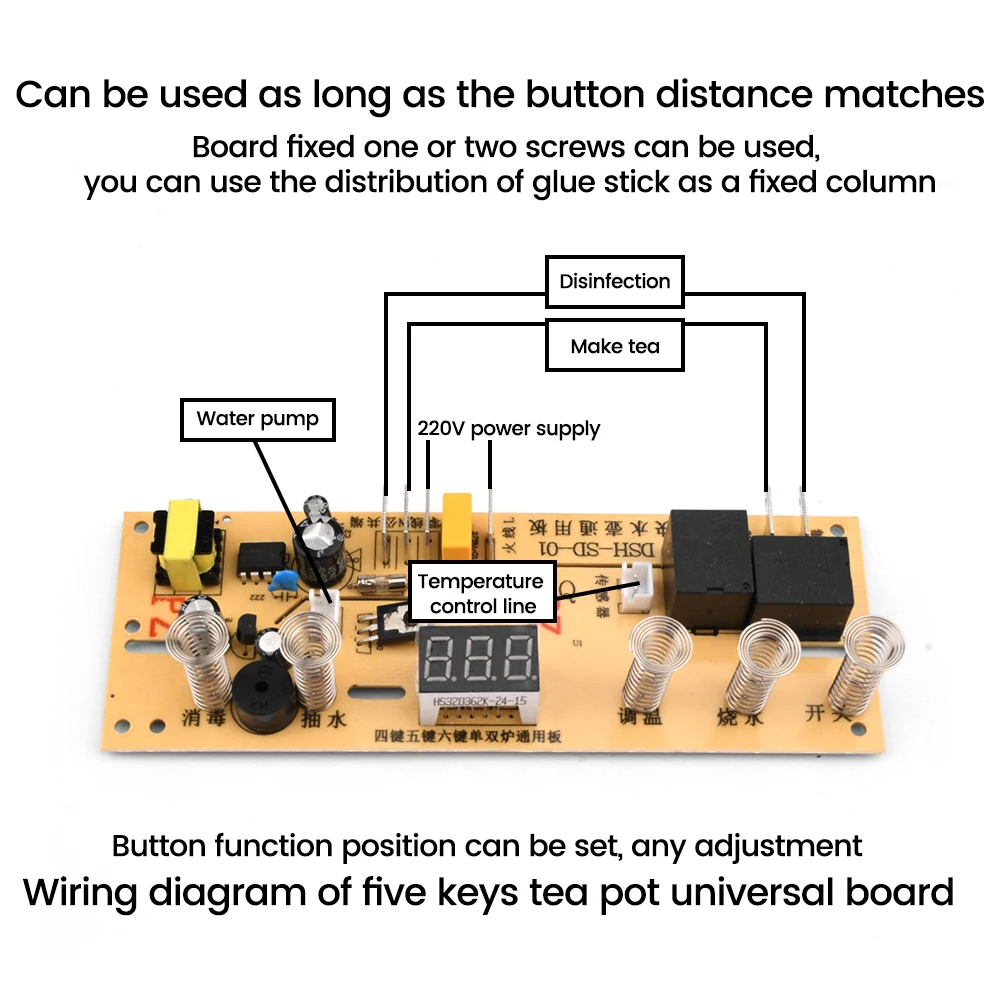

Five keys: The position of the button function can be set and adjusted arbitrarily. The board can be fixed with one or two screws, and a rubber rod can be used as a fixing column

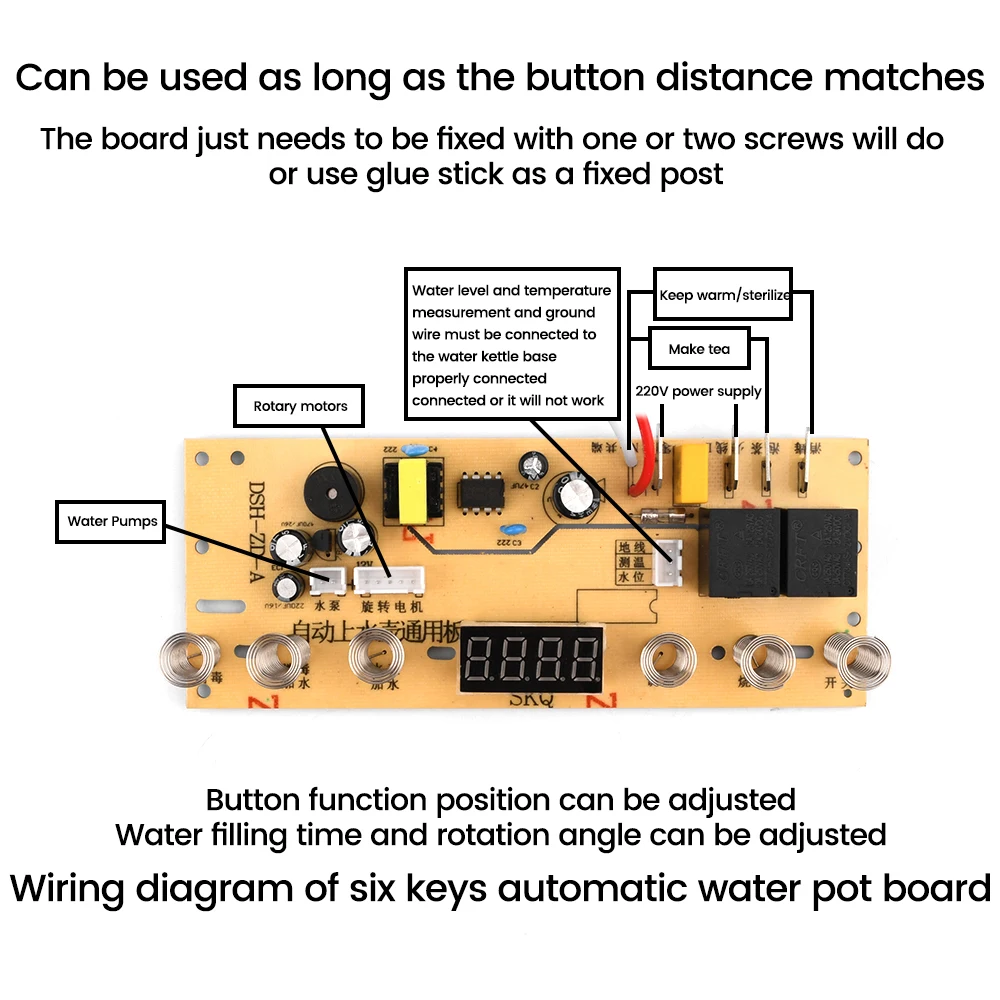

Six keys: The position of the button function can be adjusted, the water adding time and rotation angle can be adjusted, and the board can be fixed with one or two screws. You can use a glue stick as a fixing column
Product List:
1X circuit board
